Speed of rotation 8~30 rpm Well Hydraulic Rotary Boring Piling Rig Machine With 8~30 Rpm Rotation Speed KR80A

Cina Speed of rotation 8~30 rpm Well Hydraulic Rotary Boring Piling Rig Machine With 8~30 Rpm Rotation Speed KR80A pemasok
Speed of rotation 8~30 rpm Well Hydraulic Rotary Boring Piling Rig Machine With 8~30 Rpm Rotation Speed KR80A pemasok Speed of rotation 8~30 rpm Well Hydraulic Rotary Boring Piling Rig Machine With 8~30 Rpm Rotation Speed KR80A pemasok Speed of rotation 8~30 rpm Well Hydraulic Rotary Boring Piling Rig Machine With 8~30 Rpm Rotation Speed KR80A pemasok Speed of rotation 8~30 rpm Well Hydraulic Rotary Boring Piling Rig Machine With 8~30 Rpm Rotation Speed KR80A pemasok

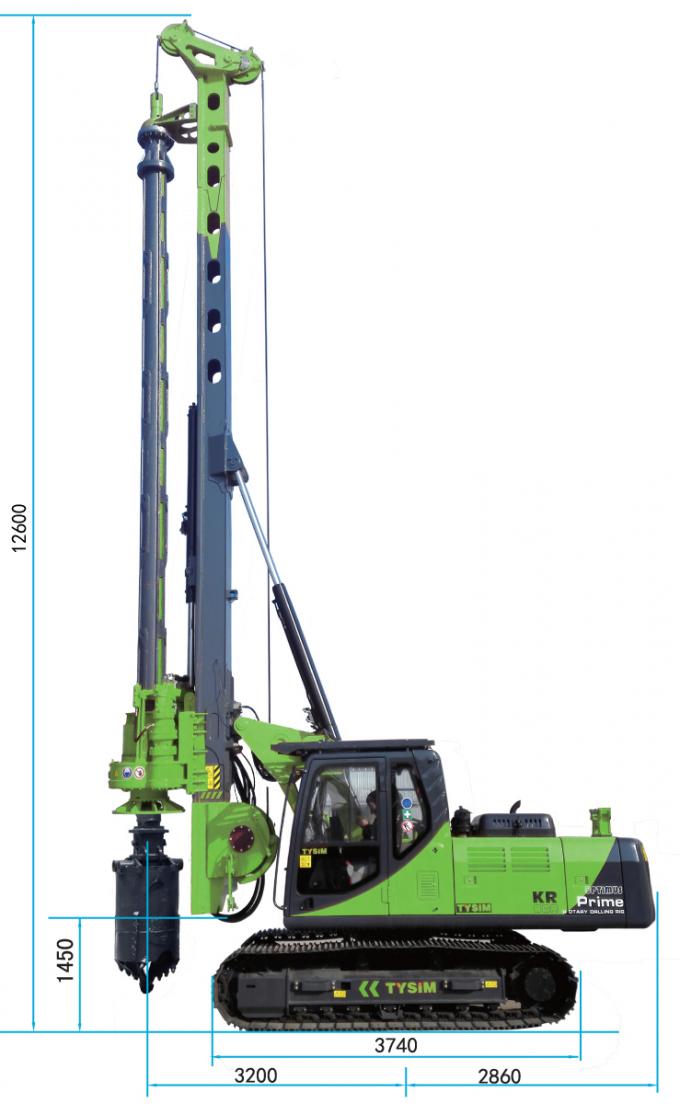

Gambar besar :  Speed of rotation 8~30 rpm Well Hydraulic Rotary Boring Piling Rig Machine With 8~30 Rpm Rotation Speed KR80A

Detail produk:

Tempat asal: Jiangsu, Cina
Nama merek: TYSIM
Sertifikasi: CE,ISO9001
Model Number: KR80A

Syarat-syarat pembayaran & pengiriman:

Minimum Order Quantity: 1 set
Harga: Negotiation
Packaging Details: Method One: Nude packing and overall transport by sea with roll-on-roll-off ship. (L*W*H=9150*2600*3250 mm);
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 5 set per month
Contact Now
Detil Deskripsi produk
Max. torque: 80 kN.m Max. drilling diameter: 1000 mm
Max. drilling depth: 28m(4 node )/22m(3 node ) Speed of rotation: 8~30 rpm
MMax. crowd pressure: 90 kN Main winch line speed: 80 m/min
Stroke(crowd system): 2000 mm Operating height: 12580 mm
Operating width: 2600 mm Overall weight: 24 t

Technical Specification
Technical Specification of KR80A Rotary Drilling Rig
Torque80 kN.m
Max. diameter1000 mm
Max. drilling depth28 m(4 node)/22 m(3 node)
Speed of rotation8~30 rpm
Max. crowd pressure90 kN
Max. crowd pull120 kN
Main winch line pull 80 kN
Main winch line speed72 m/min
Auxiliary winch line pull35 kN
Auxiliary winch line speed40 m/min
Stroke(crowd system)2000 mm/3500mm
Mast inclination(lateral)±3°
Mast inclination(forward)
Max. operating pressure34.3 MPa
Pilot pressure3.9 MPa
Travel speed2.8 km/h
Traction force 98 kN
Operating height12580 mm
Operating width2700 mm
Transport height3250 mm
Transport width2700 mm
Transport length9150 mm
Overall weight24 t
Engine
ModelCummins B3.9-C
FormWater cooling, 4 Cylinder in-line, Turbocharger
Cylinder number*diameter*Stroke(mm)4*102*120
Displacement(L)3.9
Rated Power(kW/rpm)86/2200
Max. Torque(N.m/rpm)447/1500
Kelly Bar
TypeInterlocking Friction
Section*length 3*7800 mm4*7800 mm
Depth22 m28 m
Speed of rotation 8~30 rpm Well Hydraulic Rotary Boring Piling Rig Machine With 8~30 Rpm Rotation Speed KR80A

Product introdction
TYSIM machinery focuses on the research,development and manufacture of the kind of the pile working enginerring machiney,it’s the unique company that focuses on developing small and medium-sized rotary drilling rig applying for civil enginerring,now have obtained more than 40 patents of pile working enginerring machiney.The original KP size Pile Breaker(also named break pile machine) of company in China,realize the efficiently pile cutting on a large scale,change the history that field of pile cutting inland rely on the workers and no professional equipments.This production obtained 11 core patents,among them 1 invention patent,they have been exported to Amercian,Brazil,Australia,Vietman,Indonesia and many other countries.
KR size small and medium-sized rotary drilling rig in many fields of metro,viaduct,houses win the praise of all the customers for the construction result,it will be the low cost and high efficient pile working equipments in operation field of our country’s new urbanizational construction. With the goal “be the reliable pile working proficient,fabricate the trade leading outstanding productions”,we recruit excellent talents constantly,create cause terrace for the win-win situation between staffs and company.We stick to the core concept“concentration,creative,value”concentrate on research and development in the pile basical construction field,rely on the working style of“pay attentions to details,keep improving,against the tardiness, finish daily duty”make great efforts to realize the vision of “become the pacemaker of small and medium-sized pile working machinery”.
